Effluent Evaporation Solutions

Zero Liquid Discharge

Smart Evaporator is the most efficient evaporation system that can evaporate a wide variety of industrial effluents and is superior to the other evaporation methods like the Multi Effect Evaporators, etc due to its

  • Low power consumption

  • High efficiency

  • Modularity

  • Simplicity of construction

  • Low maintenance

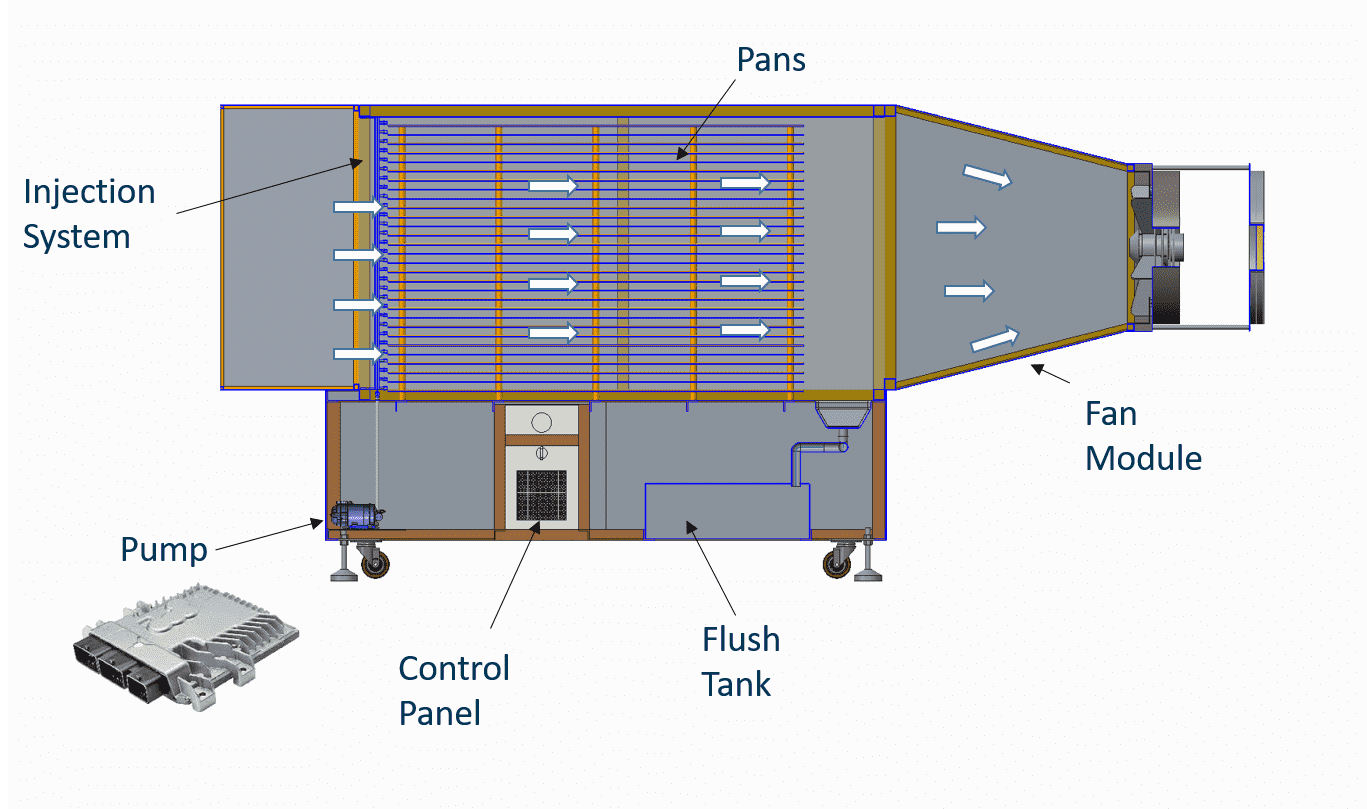

Working of the Smart Effluent Evaporator

  • The Smart Evaporator spreads the effluent on pans into a thin film ( Micro Slicing).
  • High wind speed generated across the pans evaporates the water from the effluent, leaving salts behind on the pans.
  • Un-evaporated effluent drips into a flush tank and is re-circulated.
  • The Smart Evaporator can handle a wide variety of effluents with TDS up to 250,000. It can utilize any low-grade heat available at site like boiler condensate, waste gases etc. with temperatures up to 70°C (for applications that require heat).
  • It calculates the optimum evaporation rate for given ambient conditions (relative humidity and temperature) & effluent temperature, using the patented Intelligent Algorithm and varies the effluent injection system accordingly in real time.
